High quality new truck mounted water well drilling rig machine / rotary water drill rig / borehole drilling rig

No.00192
Truck mounted water well drilling rig core sample drilling rig Ch Geological census exploration, road and high-rise building foundation exploration, and various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and d
product specification:
YKC200truck-mounted Hydraulic core drilling rig
Drill pipe (mm)::
42
50
60
$26500.00
Description
Product Description

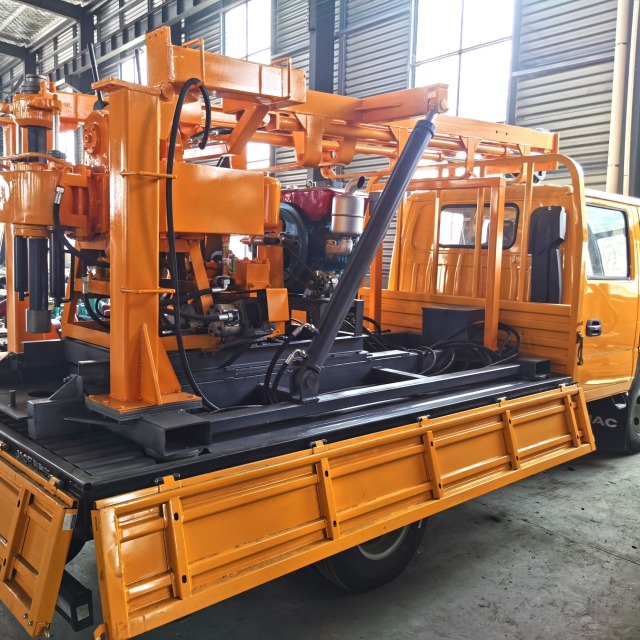

YKC200truck-mounted Hydraulic core drilling rig
High quality new truck mounted water well drilling rig machine / rotary water drill rig / borehole drilling rig

Product Application

Main features of YKC200truck-mounted Hydraulic core drilling rig 1. YKC200truck-mounted Hydraulic core drilling rig is a multifunctional hydraulic vehicle-mounted vertical shaft rotary drilling rig 2. The chassis of the car adopts the chassis of a light truck, on which important accessories such as the transmission system of the drilling rig, winches, and mud pumps are installed. The layout is reasonable and compact, and the operation is easy 3. Equipped with BW-160 mud pump, with high pressure and large flow, ensuring the drilling depth and borehole diameter 4. The drilling rig is equipped with a mobile device, which can realize the front and rear movement of the main engine of the drilling rig, which is convenient for wellhead operation 5. The drilling rig tower is hydraulic lift type automatic telescopic drilling tower, which is safe and convenient to operate.

YKC200truck-mounted Hydraulic core drilling rig adaptation range

Geological census exploration, road and high-rise building foundation exploration, and various concrete structure inspection holes, river embankments, subgrade grouting hole drilling and direct grouting, civil water wells, etc.

Technical Parameters
Drilling depth (m)
30-200
Drilling diameter (mm)
300-75
Drilling inclination (°)
90-75
Vertical shaft speed (r/min)
64、128、287、557
Vertical axis travel (mm)
450
Lifting capacity of main winch (single rope) (Kg)
1600
Rope Capacity of Main Winch (m)
35
Reel lifting speed (r/s)
17、35、75、151
Wire rope diameter (mm)
12.5
Tower height (mm)
7000
Drilling tower effective height (mm)
6500
Active drill pipe (mm)
59*53
Drill pipe (mm)
42、50、60
Rig weight (kg)
1150
engine
model
ZS1115 diesel engine
rated power
14.7kw/2200rpm
BW-160 mud pump
Rated flow (L/min)
160
Rated pressure (Mpa)
1.3
Driving power (kw)
5.15
Host weight (kg)
190
Dimensions (mm)
1110*725*965
Car chassis
Light truck

Congratulations, you have found the source manufacturer. YK Drilling Tools produces water well drilling rigs, drill pipes and matching drill bits. Various types of drilling tools can be customized. Contact us immediately to understand your drilling needs.
FAQ
The information you may like to know before order:
1. Are you a manufacture or a trade company?
We are a professional manufacturer.

2. Handling time for an order
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.

3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.

4. After Services:
1. Our sales team will response for your question within 24 hours (Holidays Excluded).
2. Technical Support will be available in any time.
3. Free replacement will provide once the failure confirmed caused by our product quality.
