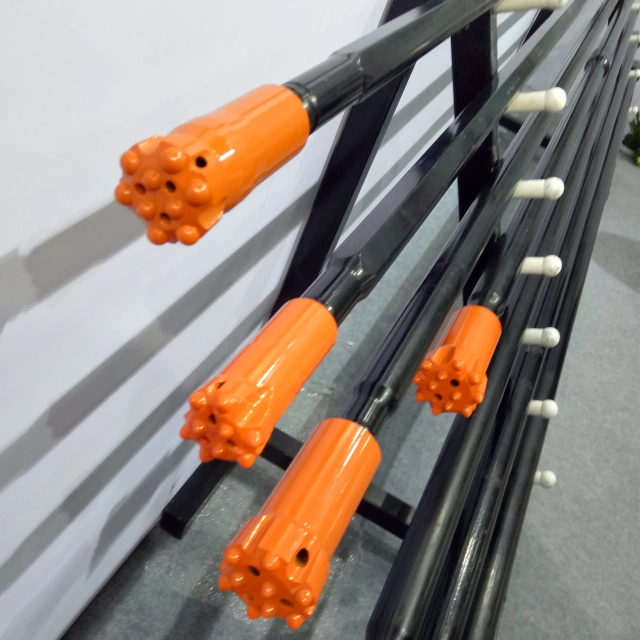

76mm R32 Buttons Bit

Rock drilling tools manufacturer YKDrill threaded button bits offers leading strength and penetration rates in the industry for more productivity, excellent straightness and hole clean quality, with max drilling performance for rock drill bits with long life to save up fuel cost rate.
Product name:
76mm R32
Face:
Flat
Drop Center
Button:
spherical
semi ballistic
ballistic
Material:
Carbon steel and carbide
Use:
drifting ,tunnelling,bolting,bench drilling,long hole drilling
Machine Type:
Drilling Tool
Description

Product Description

 tapered button bit

Rock drill bits factory YKDrill offers small hole rock drill bits: Tapered Drill Bit is different with thread button bit as long hole bit to use taper match with bit rod to be used for air leg or hand held jack hammerdriller in stone quarrying, and mining.
we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes. In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.

What is the advantage of our Button Bit ?

1. Material: 100% virgin raw material with submicron grain size;
2. Grade: Various grades for choice;
3. Advanced production equipments and testing equipments
4. Precision Ground and polished;
5. High wear resistance,high hardness and impact toughness;
6. Samples & small orders are acceptable.

Carbide button shape selection:
1. Domed/Round Button
2. Parabolic/Semi-Ballistic Buttons
3. Ballistic Button
4. Sharp Button
5. Flat Button


Tapered Bits Description:
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter: 32mm,34mm,35mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
(4)Material: Alloy Steel Bar 45CrNiMoV, Tungsten Carbide Tips YK05 or T6.
(5)Button Shape: Semi-Ballistic; Face Type: Flat Face; Bit Body: Standard
(6)Qty of button: 5,7, 8 pcs
(7)main market: India, Saudi Arabia, Chile, South Africa, stone countries consume very much.

R32

Diameter mm
Button
Name
Gauge
Front
R32 thread button bits
41
Can be Customized
43
45
R32 Retrac thread button bits
60
64
70
T38
Diameter mm
Button
Name
Gauge
Front
T38thread button bits
57
Can be Customized
64
76
T38 Retrac trhead button bits
60
64
70
76
89
T45
Diameter mm
Button
Name
Gauge
Front
T45 thread button bits
70
Can be Customized
76
89
102
115
T45 Retrac trhead button bits
70
76
80
89
102
T51
Diameter mm
Button
Name
Gauge
Front
T51 thread button bits
89
Can be Customized
102
115
127
T51 Retrac trhead button bits
89
102
115
127
