4.5m Length 4 Inch Core Water Well Drilling Rods For Sale

No.00112
4.5m Length 4 Inch Core Water Well Drilling Rods For Sale
2 3/8IF 76mm/89mm:
$120.00
Description

Product Application

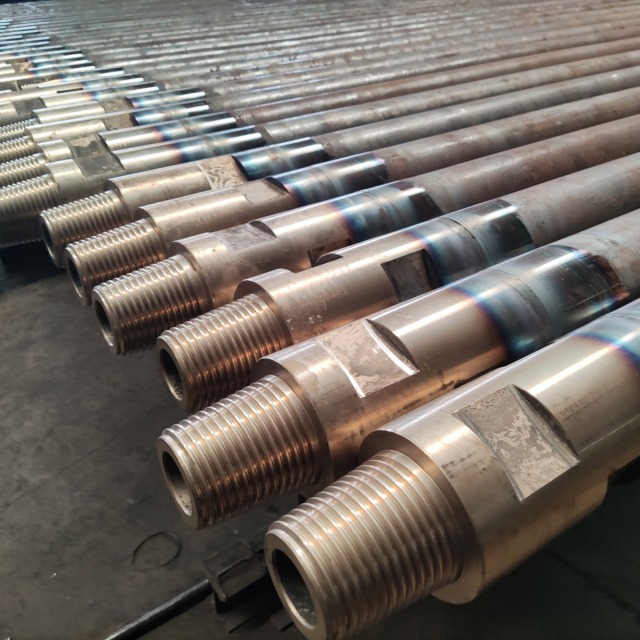

DTH drill pipes are widely used in mining,water well drilling,geothermal,oil and all kinds of DTH rock drilling,with high quality low carbon steel to ensure good resistance to strengthen  and tensile,friction welded to ensure the adapter and pipe connect tightly as a whole set the cyclic extrusion-compression ensure reliable pipe.

Specification
Diameter(mm)
Length(mm)
Thread type
Craft
Connection type
50
1000-3000
API 2 3/8 REG
Friction welding
Box/pin
60
1000-3000
API 2 3/8 REG
Friction welding
Box/pin
76
1500-3000
API 2 3/8 REG
Friction welding
Box/pin
89
1500-3000
NC26(2 3/8IF)
Friction welding
Box/pin
102
1500-6000
NC31(2 7/8IF)
Friction welding
Box/pin
108
1500-6000
NC31(2 7/8IF)
Friction welding
Box/pin
114
1500-6000
NC31(2 7/8IF) OR NC35
Friction welding
Box/pin
127
1500-6000
NC38(3 1/2IF)
Friction welding
Box/pin

60 Drill pipe (Square Thread)
Diameter (mm)
Length (mm)
Thickness(mm)
Thread type
Connector length
60
1000
6.5
48*10*2
210/160
60
1500
6.5
48*10*2
210/160
60
2000
6.5
48*10*2
210/160
60
3000
6.5
48*10*2
210/160
60 Drill pipe (Taper Thread)
Diameter (mm)
Length (mm)
Thickness(mm)
Thread type
Connector length
60
1000
6.5
taper
210/160
60
1500
6.5
taper
210/160
60
2000
6.5
taper
210/160
60
3000
6.5
taper
210/160
76*(73*5.5) Drill pipe
Diameter (mm)
Length (mm)
Thickness(mm)
Thread type
Connector length
76
1000
5.5
API23/8REG
190/180
76
1500
5.5
API23/8REG
190/180
76
2000
5.5
API23/8REG
190/180
76
3000
5.5
API23/8REG
190/180
76*4 drill pipe
Diameter (mm)
Length (mm)
Thickness(mm)
Thread type
Connector length
76
1000
4
API23/8REG
190/180
76
