160m water well drilling rig hydraulic deep well drilling machine geological exploration drilling rig

Name: 160m water well drilling rig hydraulic deep well drilling machine geological exploration drilling rig
Brand: Shandong Yikuang Drilling Technology Co.,Ltd.
SKU: 1601351849831
Availability: InStock
Rating: 5 (1 reviews)

No.1601351849831

YKDRILL Drilling Rig, Manufacturers in China， if you want to update your pneumatic drilling rig, YK brand is your one of your good choice. YK180, YK200, YK260, YK280, YK300, YK350, YK600, YK800 drilling rig。

Model Number:

YKZ-160

Power:

65KW

Contact WhatsApp

Add to Quote List View Quote List

Description

Key attributes

Industry-specific attributes

Type

Pneumatic drilling rig

Power Type

Pneumatic

Use

Water Well

Voltage

diesel engine

Drilling Diameter

50mm, 75mm, 300mm, 400mm

Drilling Depth

Max.160m

Other attributes

Place of Origin

Shandong, China

Weight

2600 KG

Warranty

1 Year

Core Components

Engine, Gear

Key Selling Points

high performance cost ratio

Brand Name

Yi Kuang

Dimension(L*W*H)

2300mm*1200mm*1900mm

Machinery Test Report

Provided

Video outgoing-inspection

Provided

Mobility

2.5 km/h

diameter of drill rod

76-89mm

Rotation speed

65-100r/min

Swing torque

4500N.m

Maximum lifting force

10-15ton

Maximum rod length

2.4m

Air consumption

10-25m2/min

Working air pressure

1.2-3.0mpa

lift force

13T

Packaging and delivery

Selling Units:

Single item

Single package size:

300X170X198 cm

Single gross weight:

3000.000 kg

Product descriptions from the supplier

Quick drilling, easily handled！We have complete production experience
Best price！If you are interested, please contact me.

Product Overview

160m water well drilling rig hydraulic deep well drilling machine geological exploration drilling rig

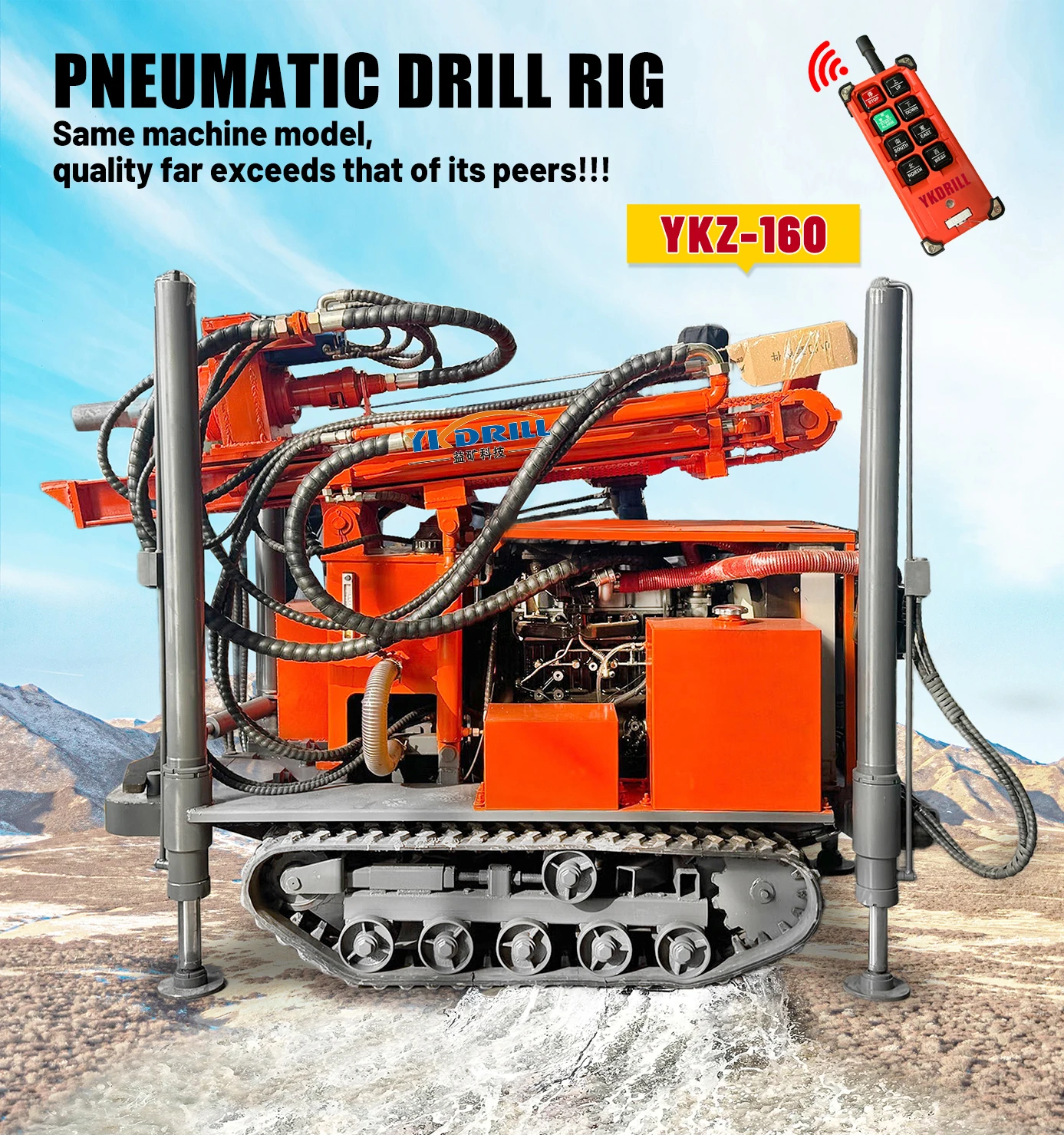

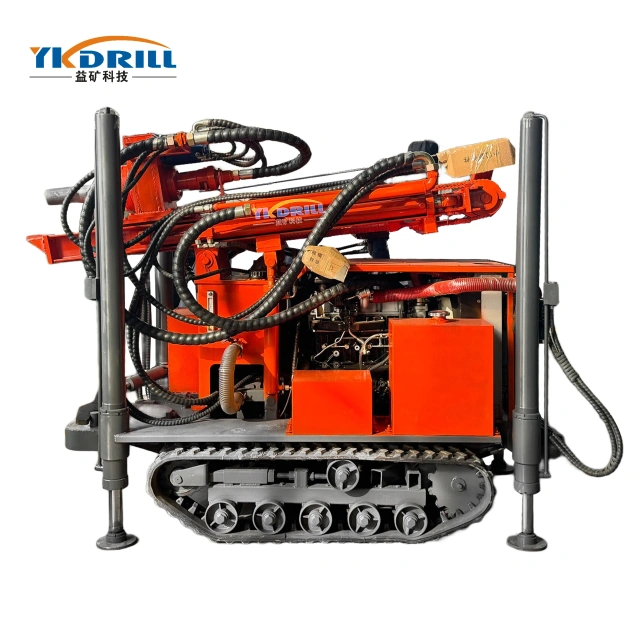

1.YKZ-160 Water well drilling rig is a kind of light, efficient, and multifunctional drilling equipment, which is mainly suitable forindustrial, civil, and geothermal drilling.2.The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area.It is especially suitable for taking water from mountain areas and rock stratum.3.YKZ-160 can be used in different strata, and the diameter of the drilling can reach 130-400mm.4.YKZ-160 adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinderpropulsion.

PRODUCT SPECIFICATIONS

YKZ-160 pneumatic drilling rig is an efficient and versatile drilling equipment. Mainly used for drilling160series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable toindustrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexiblewide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.

Product Name	pneumatic Water Well Drilling Rig
Model	YKZ-160
Overall Weight	2600kg
Dimension	230012001900mm
Drilling Diameter	Ф130-Ф300mm
Drilling Depth	160m
Diameter of Drill Rod	Ф76mmФ 89mm
Maximum lifting force	10-15ton
Working Air Pressure	1.2-3.0mpa
Air Consumption	10-25m2/min
Rotary Speed	65-100r/min
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse.

Drilling Mode	Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling
Impactor	China Famous Brand New DiamondMiddle and High Pressure Series Impactor
Optional Accessories	1.1000 hours Spare Parts 2.Mud Pumps 3.Electric welding machine 4.Foam Pump

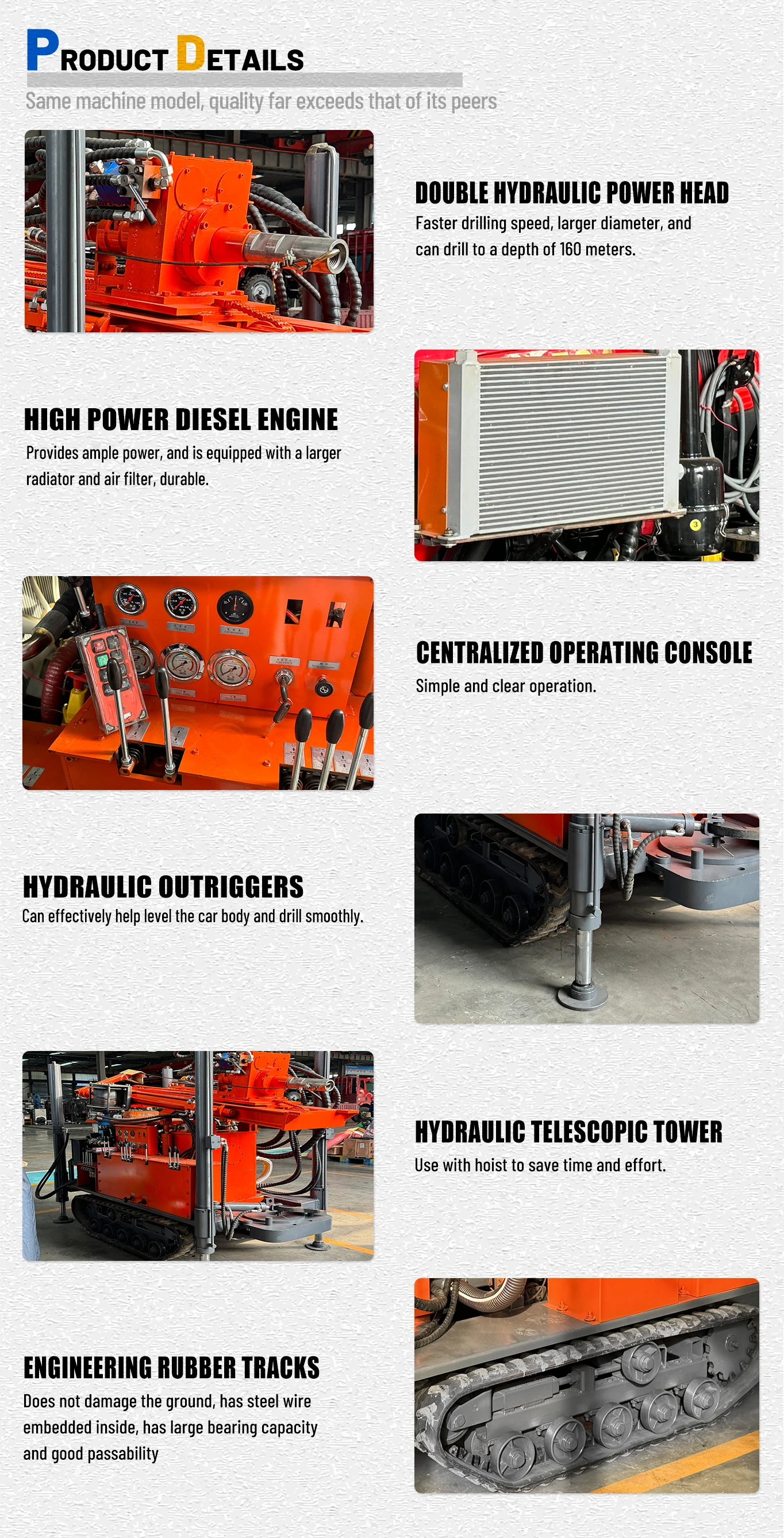

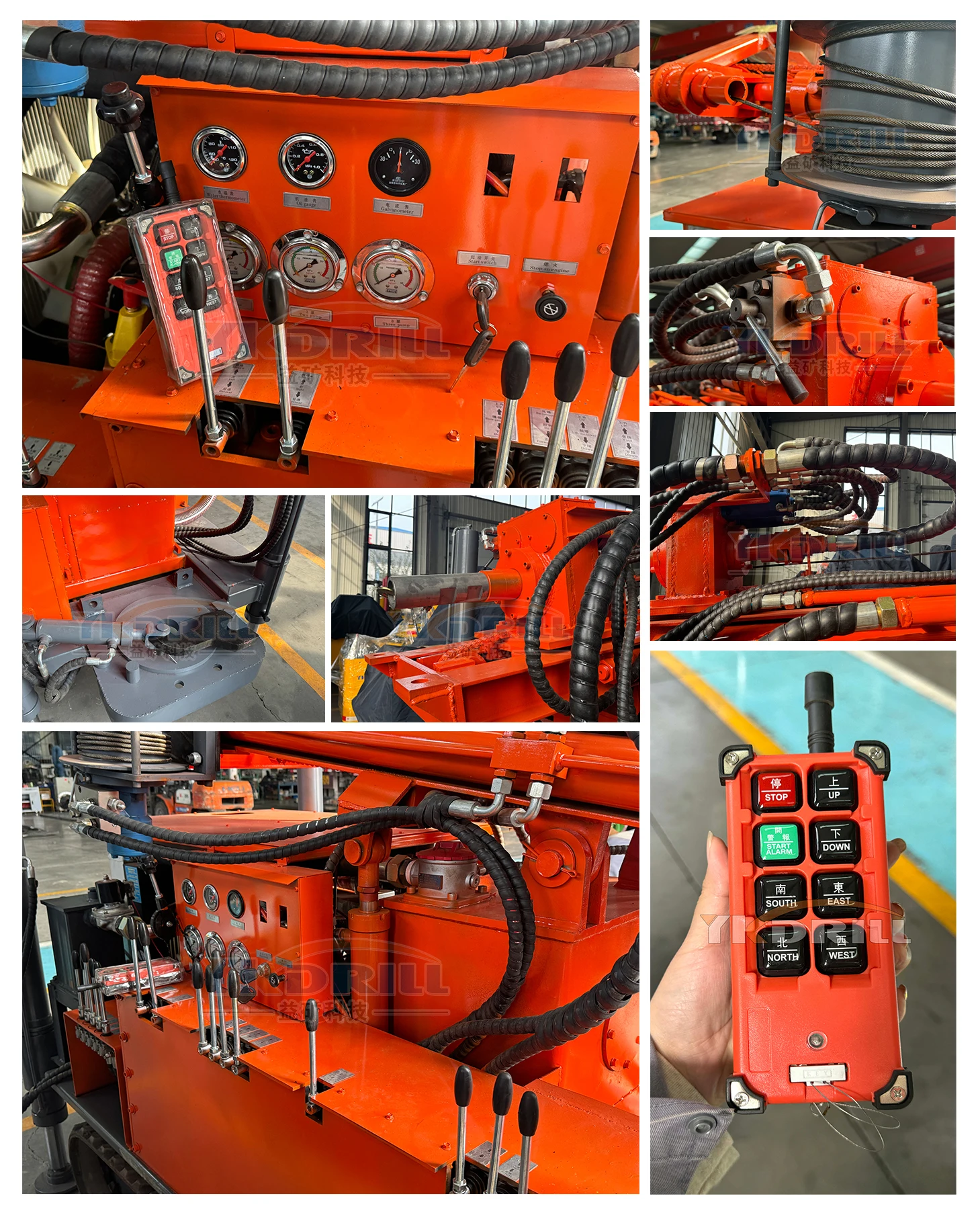

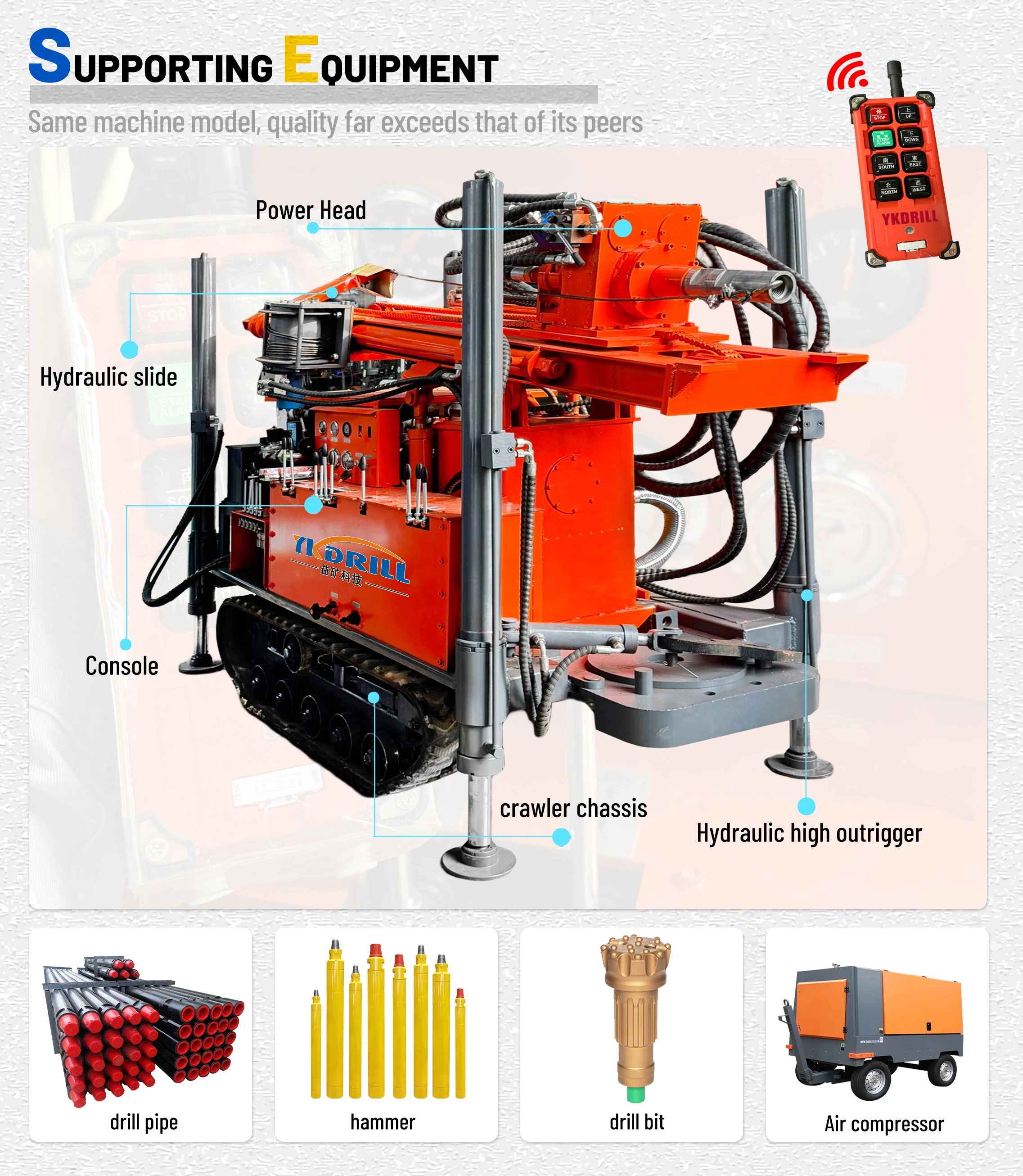

PRODUCT CONFIGURATION
