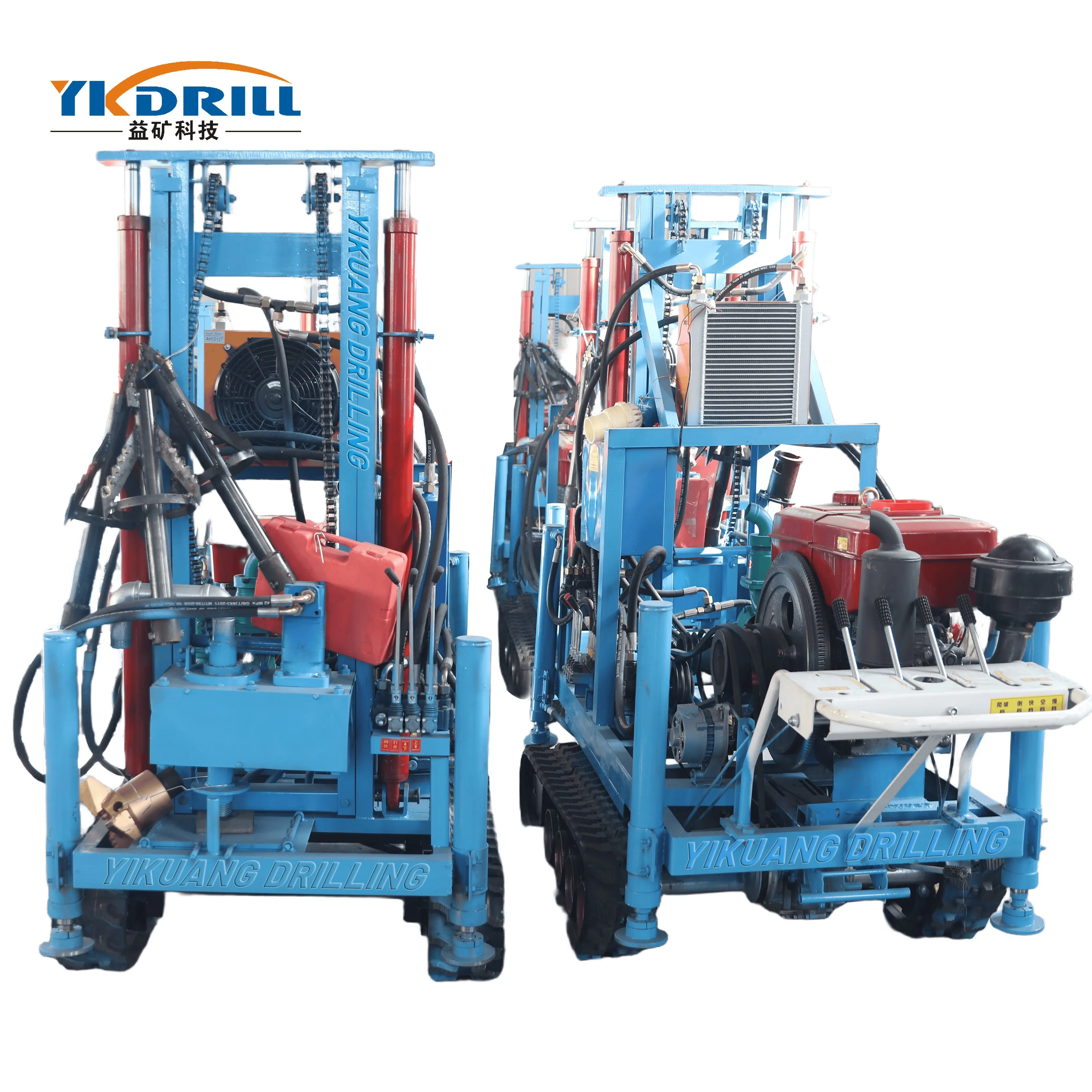

Water Well Drilling Rig Large Diameter High Power 100m Well Drill with Wholesale Price
This machine Is a wide range of uses of portable drill. Suitable for railway, water conservancy, bridge, dam foundation and other buildings of well drilling, geological survey, geological core drilling, small grouting hole, blasting hole, according to the different formation of the selection of diamond, composite pieces and alloy drill.This drilling rig can drill 40m, 50m, 60m, 70m,80m, 100m, 120m, 150m.
Feb 25th,2025
230 Views
This machine Is a wide range of uses of portable drill. Suitable for railway, water conservancy, bridge, dam foundation and other buildings of well drilling, geological survey, geological core drilling, small grouting hole, blasting hole, according to the different formation of the selection of diamond, composite pieces and alloy drill.This drilling rig can drill 40m, 50m, 60m, 70m,80m, 100m, 120m, 150m.
Advantages of drilling machine
1. One person operation, save labor cost.
2. With universal wheel,convenient to transport.
3. Drilling process is stable, no jamming or shaking.
4. Economical,Light weight, simple operation,very easy to install.
|
Model
|
YK-120
|
|
Dimension (mm )
|
1900 x 900 x 1200
|
|
Weight (Kg)
|
650
|
|
Overall weight (Kg)
|
1200
|
|
Max.Drilling depth (m)
|
150
|
|
Drilling diameter (mm)
|
75-300
|
|
Opening diameter (mm)
|
300
|
|
Final hole diameter (mm)
|
75
|
|
Pipe rod (mm)
|
50
|
|
Borehole inclination
|
90° - 75°
|
|
Vertical shaft forward speed (r/min)
|
120
|
|
Torque (N)
|
800-1000
|
|
Main machine power
|
22 HP
|
|
Drill rod replacement
|
Automatic unloading rod, artificial replacement rod
|
